Premium SS Casting Solutions
We specialize in manufacturing high-quality Stainless Steel castings that cater to demanding industrial applications requiring superior corrosion resistance, high strength, and longevity.
Our SS casting range includes widely used grades such as SS304, SS304L, SS316, SS316L, and Duplex stainless steel. Each grade is selected based on its unique chemical composition and mechanical properties, ensuring optimal performance in specific operational environments. From food processing and chemical plants to marine and pharmaceutical equipment, our precision castings are engineered to meet strict international quality standards.
Available SS Grades
- SS304 (CF8): Excellent corrosion resistance, ideal for general industrial and food processing applications.
- SS304L (CF3): Low carbon version of 304, offering enhanced weldability and reduced risk of carbide precipitation.
- SS316 (CF8M): Contains molybdenum for improved resistance to pitting and crevice corrosion, suitable for marine and chemical environments.
- SS316L (CF3M): Low carbon version of 316, combining superior corrosion resistance with excellent welding properties.
- Duplex: Offers a combination of high strength and exceptional stress-corrosion cracking resistance, perfect for heavy-duty applications.
Industrial Applications
Chemical ProcessingPharmaceutical EquipmentMarine ComponentsFood ProcessingIndustrial Valves & PumpsHeat Exchangers

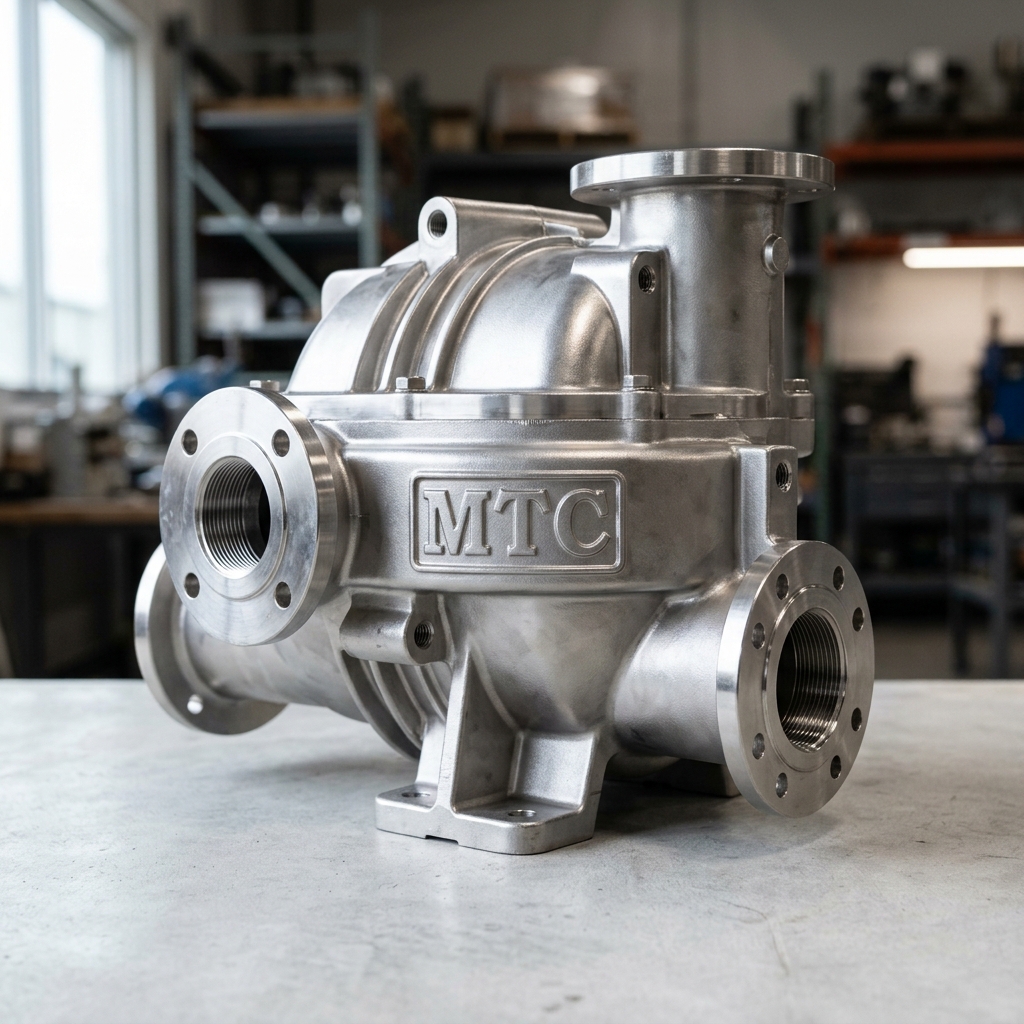

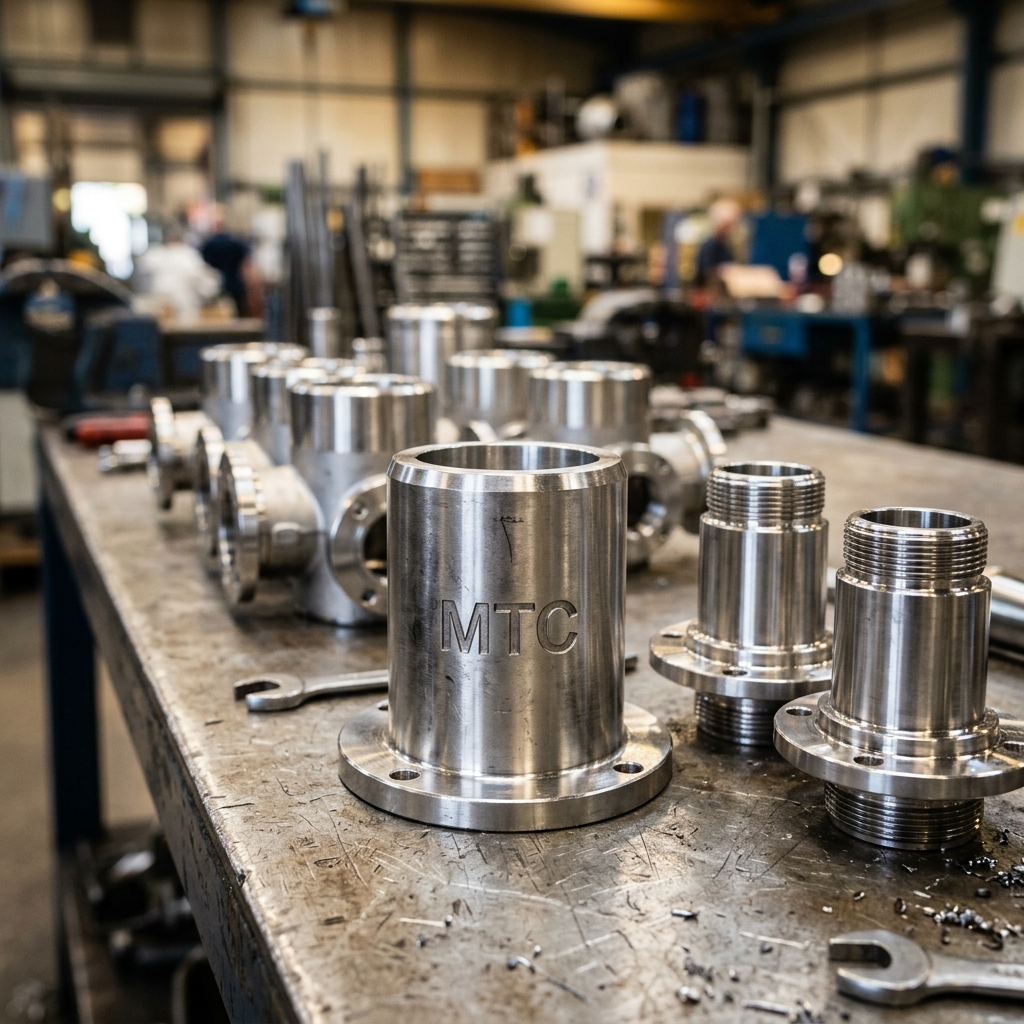

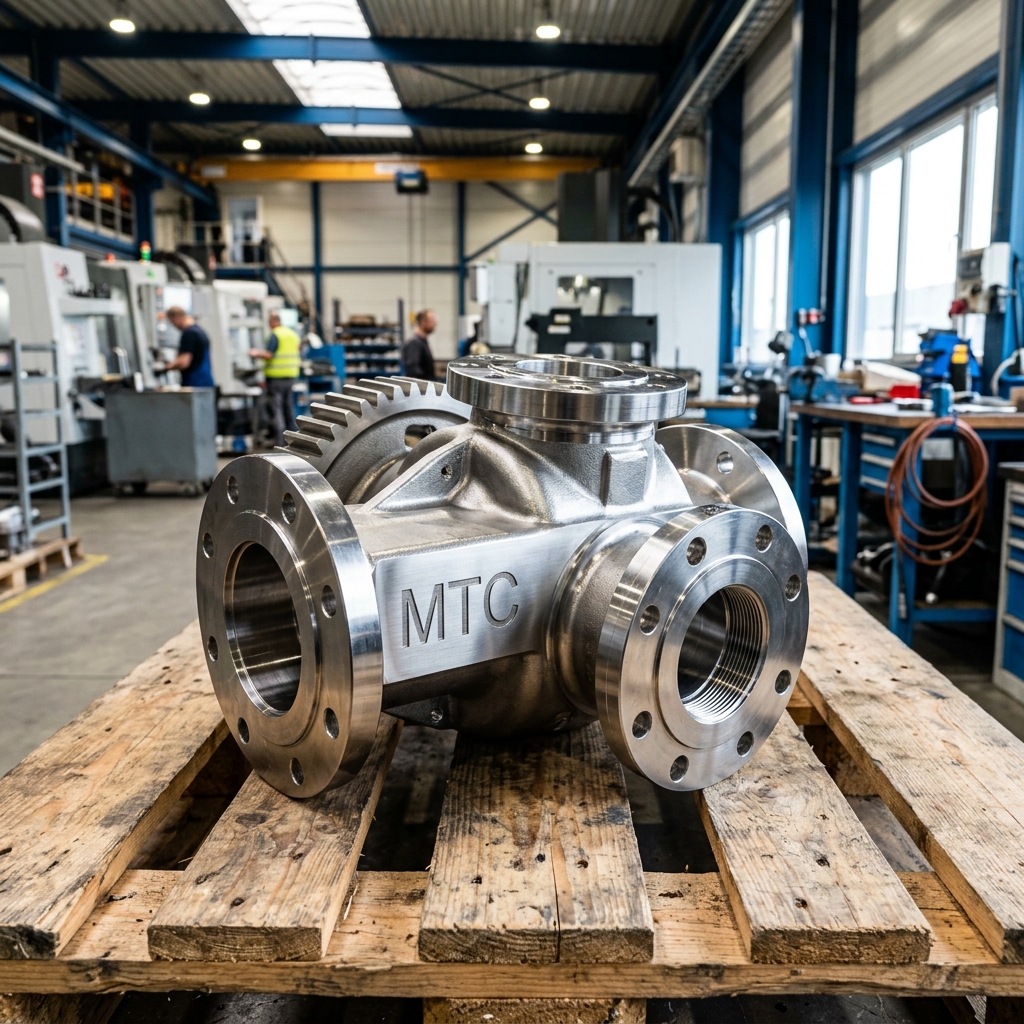

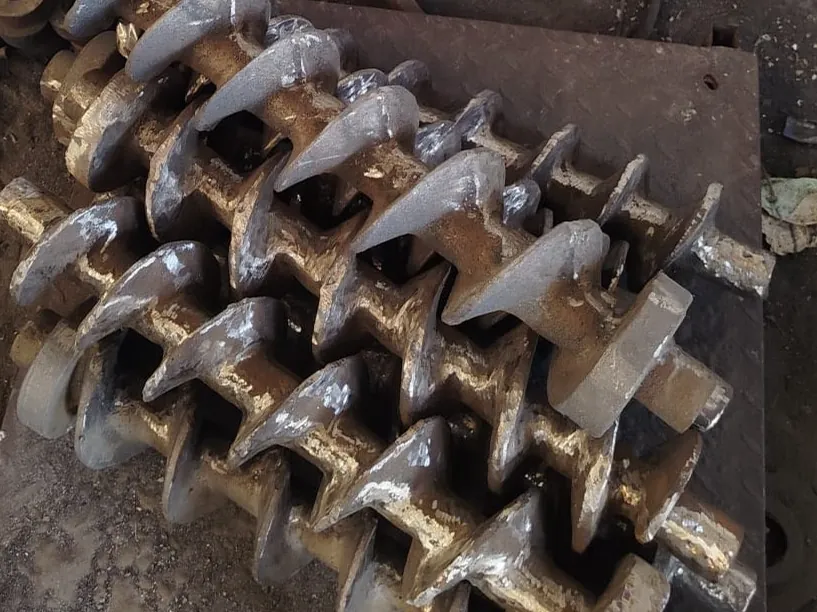

SS Casting Products Gallery
Technical Specifications & Chemical Composition
| Grade | C (Max %) | Mn (Max %) | Si (Max %) | Cr (%) | Ni (%) | Mo (%) | Tensile Strength (MPa) |
|---|---|---|---|---|---|---|---|
| SS304 | 0.08 | 2.00 | 1.00 | 18.0 - 20.0 | 8.0 - 10.5 | - | Min 515 |
| SS304L | 0.03 | 2.00 | 1.00 | 18.0 - 20.0 | 8.0 - 12.0 | - | Min 485 |
| SS316 | 0.08 | 2.00 | 1.00 | 16.0 - 18.0 | 10.0 - 14.0 | 2.0 - 3.0 | Min 515 |
| SS316L | 0.03 | 2.00 | 1.00 | 16.0 - 18.0 | 10.0 - 14.0 | 2.0 - 3.0 | Min 485 |
| Duplex (e.g., 2205) | 0.03 | 2.00 | 1.00 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | Min 620 |
Need High-Quality SS Castings?
Provide us with your grade requirements and drawings. We'll respond promptly with a competitive quote.
